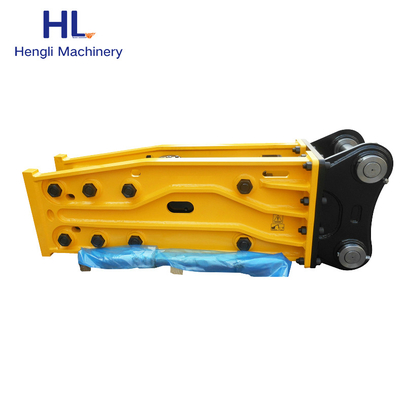

HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear

I'm Online Chat Now

HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear

HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear
HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear

Large Image :  HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear

Product Details:
Place of Origin: Guangdong, China
Brand Name: HL
Certification: CE
Model Number: HL53
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $100.00 - $500.00/Pieces
Packaging Details: Export wooden box,Export tray
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Piece/Pieces per Week

HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear

Description
Warranty: 1 Year Applicable Industries: Construction Work
Weight: 147 Kg Suitable Excavator(ton): 10~30 Ton
Brand: HL Delivery: 5-15 Days
Process: Forging Local Service Location:: None
After Warranty Service: Video Technical Support, Online Support After-sales Service Provided: Video Technical Support, Online Support
High Light:

Mini Excavator Hydraulic Breaker

,

10 Ton Excavator Hydraulic Breaker

 HL53 Excavators quick coupler hydraulic breaker hammer shear mini excavator hydraulic breaker price

project
unit
HL53
total length
mm
1140
working weight
kg
147
ib
302
work pressure
kgf/cm2
90-120
psi
1280-1706
oil quantity
l/min
25-45
9pm
6.6-11.9
Strike frequency
bpm
550-1000
Drill rod diameter
mm
53
inch
2.08
Drill rod length
mm
580
inch
22.79
Drill rod weight
kg
9
Tubing size
mm
13
inch
PF1/2
Suitable for excavators
ton
2.1-4.0
m3
0.2-0.2

Specification
item
value
Marketing Type
Hot Product 2022
Place of Origin
China
province
Guangdong
brand
HL
Warranty
1 Year
new or old
New
use
construction work
weight
147kg
Suitable Excavator(ton)
10~30 ton
Core Components
mainbody
Brand
HL
Payment
 T/T;MoneyGram;Western Union;D/P;D/A;T/T
Delivery
5-15 Days
Process
forging
Local Service Location:
None
Warranty of core components
1 years
After Warranty Service
Video technical support, Online support
After-sales Service Provided
Video technical support, Online support



HL hydraulic crusher has been built with several investments in facilities such as MCT (General Purpose Machine Center), CNC numerical control machine) and large crusher grinder machines to automate the production process and achieve consistent quality. To ensure the accuracy of centrality, the inside of the cylinder and valve are processed by a large bore grinding machine dedicated to the crusher, with special super-finishing and bore grinding operations to improve surface fineness and product perfection.



Model and selection:


1) The numbers in the hammer model may indicate the weight of the excavator or bucket capacity, or the weight of the hammer, or the diameter of the drill pipe, or the impact energy of the hammer. In most cases, there is no one-to-one correspondence between a number and its meaning. It is often a range of numbers. And sometimes the parameters of the hydraulic hammer have changed, but the model remains unchanged, which makes the meaning of the model more ambiguous. More importantly, the data is inconsistent with the actual data, so users should pay more attention.


2) The matching of hydraulic hammer and excavator, for excavator users, the main consideration is the matching of weight, but also to verify the matching of power. For other load-bearing machines, power matching and weight matching are equally important. It is also very reliable to select hydraulic hammer according to the experience of other users.



Product Description
HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear 0
HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear 1
HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear 2
HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear 3
HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear 4



HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear 5
HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear 6
HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear 7
HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear 8
HL53 10 ton Mini Excavator Hydraulic Breaker Quick Coupler Hydraulic Breaker Hammer Shear 9









FAQ:

1. Are you a trader or a manufacturer?

We are a specialized machinery parts manufacturing company integrating product development, production, sales and service.



2. How to determine the parts are suitable for my excavator?

Please provide us with the correct model/machine serial number/any part number, or measure the part size, drawing.



3. Can we customize products with our brand?

Of course, we welcome cooperation to customize OEM/ODM product services, which can be completed from design, production, packaging, and logistics.



4. What kind of payment methods do you accept?

We usually accept T/T, L/C or Western Union. Other payment methods can also be negotiated.



5. Can you provide after-sales service?

Of course, we have professional after-sales technicians to help you solve the problems you encounter.



10. What other services can you provide?

10-1. Warranty for one year, free replacement for damage with abnormal wear.

10-2. Provide technical support to customers.

10-3. Help you develop the market.

10-4. Exclusive agent VIP treatment.
