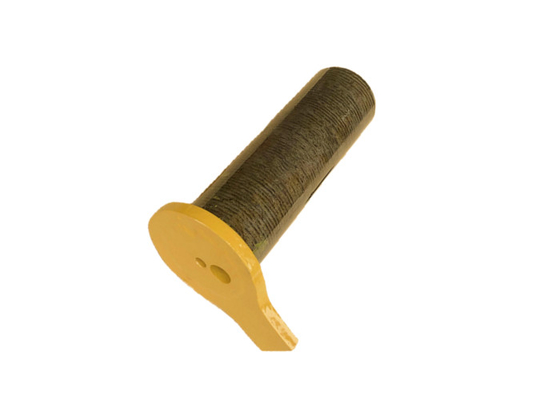

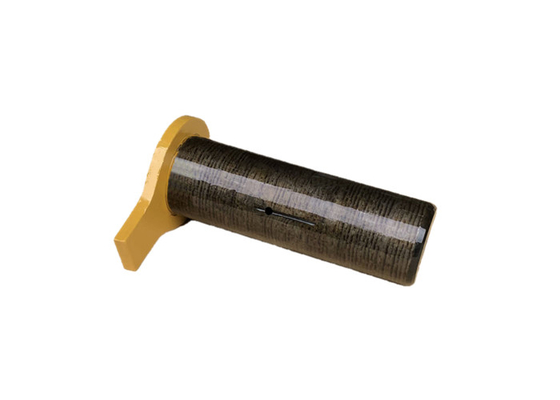

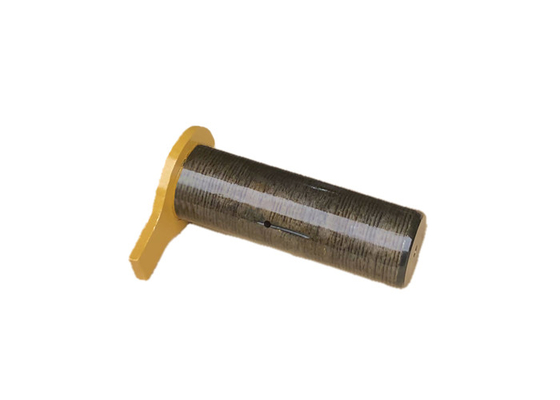

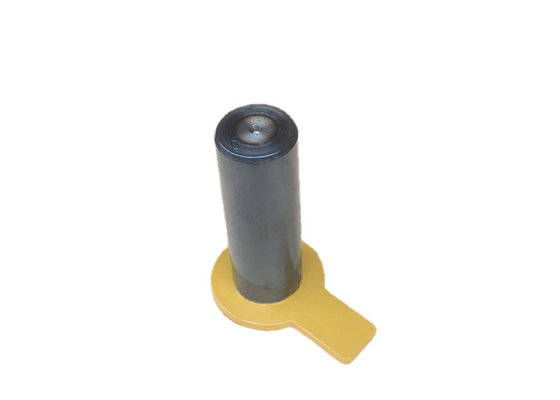

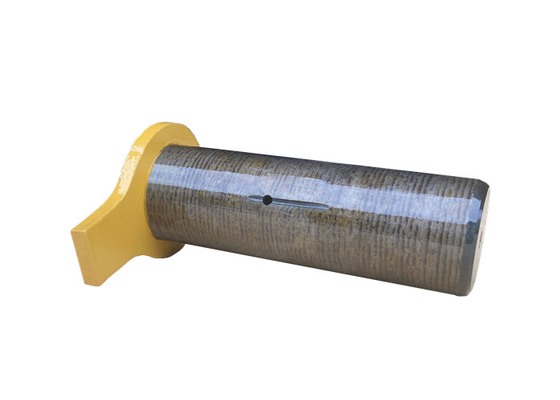

45mm Excavator Boom Pins And Bushings With Phosphating

I'm Online Chat Now

45mm Excavator Boom Pins And Bushings With Phosphating

45mm Excavator Boom Pins And Bushings With Phosphating
45mm Excavator Boom Pins And Bushings With Phosphating 45mm Excavator Boom Pins And Bushings With Phosphating 45mm Excavator Boom Pins And Bushings With Phosphating 45mm Excavator Boom Pins And Bushings With Phosphating 45mm Excavator Boom Pins And Bushings With Phosphating

Large Image :  45mm Excavator Boom Pins And Bushings With Phosphating

Product Details:
Place of Origin: China
Brand Name: HL
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: negotiable
Packaging Details: Packing in wooden cases
Delivery Time: 5-15 Days
Payment Terms: T/T L/C, Western Union, D/P, D/A
Supply Ability: 300000 pieces / month

45mm Excavator Boom Pins And Bushings With Phosphating

Description
Material: Steel 45#,40Cr Technology: Heat Treated
Service: OEM Customized Services Applicable Industries: Retail, Excavator
Operating Characteristics: High Speed Size: 45*280,45*290,45*300,45*320,45*330,45*350,45*380
Suitable Excavator(ton): 20ton, 15ton, 12ton, 18ton, 25ton, 30ton Process: Forging
High Light:

excavator bucket 45mm pins

,

45mm excavator boom pins and bushings

,

excavator boom pins and bushings

Loader Alloy Steel Backhoe Excavator Bucket Boom Pins Shaft 45mm With Phosphating



Over 2000 pins and bushings in stock for over 300 excavator models:

Our range includes: Bucket pins from 25mm to 160mm diameter, suitable for most excavators and construction machinery. 25mm to 160mm ID bushings. Featured oversized pins and bushings. Selected boom and bucket pins.



Bucket pin
Model Model Model Model
70*260 80*320 65*510/With baffle 71*480/ZAX120/Dedicated arm pin
70*280 80*340 65*520/With baffle 71*190Hole distance/220Total length/EX120-5
70*300 80*360 65*520/2 cm baffle 71*190Hole distance/220Total length/EX120-5
70*320 80*380 65*520Total length(Hole distance500)/SH60A2 71*200Total length(Hole distance175)/ZAX120-3
70*340 80*400 65*550/With baffle 71*210/With baffle
70*360 80*420 65*520/HD450/Special pin with nut 71*210Hole distance/240Total length
70*380 80*430 65*700 /Screw holes on both sides 71*420Hole distance/460Total length/EX120-5
70*400 80*440 65*700/With baffle/HD450 71*700/With baffle
70*410 80*450 65*740/With baffle 71*710 /Screw holes on both sides
70*420 80*460 70*140/With baffle 71*720/ZAX120-3/EX120-5/ZAX135-3
70*430 80*470 70*180/With baffle 71*730/EX120-3
70*440 80*480 70*190/With baffle 71*750/ZAX
70*450 80*490 70*190/2 cm baffle 75*220/E320B
70*460 80*500 70*190Hole distance/220Total length/Round head 75*560/HD550/Special pin with nut
70*470 80*510 70*190/DH150/Dedicated arm pin 75*650/Screw holes on both sides/SK100/SK120-3/5
70*480 80*520 70*200/With baffle 75*700 /2 cm baffle/Liugong915/Dedicated arm pin
70*490 80*530 70*210/With baffle 75*750/SH120
70*500 80*540 70*210/E320B 80*200/With baffle
70*510 80*550 70*210Hole distance/240Total length/Round head 80*210/With baffle
70*520 80*560 70*220/With baffle 80*210Hole distance/240Total length/Round head
70*530 80*570 70*220/2 cm baffle 80*220/With baffle
70*540 80*580 70*230/With baffle 80*230/With baffle
70*550 80*590 70*230/SK135 80*230/2 cm baffle
70*560 80*600 70*240/With baffle 80*230/E320B
70*570 80*610 70*250/With baffle 80*230/SK200-3/Dedicated arm pin
70*580 80*620 70*250Total length(Hole distance230) 80*240/With baffle
70*600 80*630 70*270/With baffle 80*250/With baffle
70*620 80*640 70*380/With baffle 80*260Hole distance/300Total length/Round head
70*630 80*650 70*380/2 cm baffle 80*280/With baffle
71*440 80*660 70*390/Hole distance345/With card slot/Yanmar30-5 80*280/E336
71*450 80*670 70*410/With baffle 80*300/With baffle
71*500 80*680 70*410/2 cm baffle 80*410/E312
75*400 80*690 70*430/With baffle 80*530/SK200-3
75*420 80*700 70*430/2 cm baffle 80*530/With baffle/R215-7
75*430 80*720 70*450/2 cm baffle 80*570/With baffle
75*440 80*750 70*450/SK120/SK130/Dedicated arm pin 80*580/HD700/HD820/Special pin with nut
75*450 80*800 70*480/HD512/Special pin with nut 80*620/Screw holes on both sides/E312
75*460 85*420 70*650/Screw holes on both sides 80*640/Screw holes on both sides
75*480 85*430 70*660/Screw holes on both sides 80*730/E312
75*500 85*440 70*700/With baffle 80*730/Screw holes on both sides/HD820
75*520 85*450 70*700/2 cm baffle 80*740/Screw holes on both sides/E320
75*530 85*480 70*720/With baffle/HD512 80*800/With baffle
75*540 85*500 70*720/2 cm baffle/HD512 80*810/With baffle
75*550 85*520 70*700/Screw holes on both sides/Xiagong815 80*830/With baffle
75*560 85*530 70*730/With baffle 80*800/Screw holes on both sides
75*580 85*550 70*730/2 cm baffle 80*830/Screw holes on both sides
75*600 85*580 70*750/With baffle 80*850/With baffle
  85*600 70*750/2 cm baffle 80*820/With baffle
    70*750/EX120-2/Dedicated arm pin 80*900/With baffle
    70*760/A screw hole/SH265/Dedicated arm pin 80*225/E320B/Dedicated arm pin
    70*775/SK120/Dedicated arm pin 80*260/E385/Dedicated arm pin
    70*532/E385/Dedicated arm pin 80*442/PC600/Dedicated arm pin
    70*214/PC600/Dedicated arm pin 80*506/PC600/Dedicated arm pin
    70*442/PC600/Dedicated arm pin

45mm Excavator Boom Pins And Bushings With Phosphating 045mm Excavator Boom Pins And Bushings With Phosphating 1


FAQ:

1. Are you a trader or a manufacturer?

We are a specialized machinery parts manufacturing company integrating product development, production, sales and service.



2. How to determine the parts are suitable for my excavator?

Please provide us with the correct model/machine serial number/any part number, or measure the part size, drawing.



3. What is your minimum order quantity?

There is no limit to this, it depends on the number of products you buy.



4. What are your advantages in the machinery manufacturing industry?

We have a strong spot inventory, fast delivery time, adopt the latest production technology and craftsmanship, high-quality products, and the best customer service.



5. How is the packaging of the goods?

Standard export packaging, wooden boxes, pallets, or according to customer requirements.



6. How long is the delivery time?

For products in stock, the delivery time is 2-7 days after the order is confirmed, and 15-25 days for other products. The specific need to communicate and negotiate.



7. Can we customize products with our brand?

Of course, we welcome cooperation to customize OEM/ODM product services, which can be completed from design, production, packaging, and logistics.



8. What kind of payment methods do you accept?

We usually accept T/T, L/C or Western Union. Other payment methods can also be negotiated.



9. Can you provide after-sales service?

Of course, we have professional after-sales technicians to help you solve the problems you encounter.



10. What other services can you provide?

10-1. Warranty for one year, free replacement for damage with abnormal wear.

10-2. Provide technical support to customers.

10-3. Help you develop the market.

10-4. Exclusive agent VIP treatment.
